| Size: | |
|---|---|

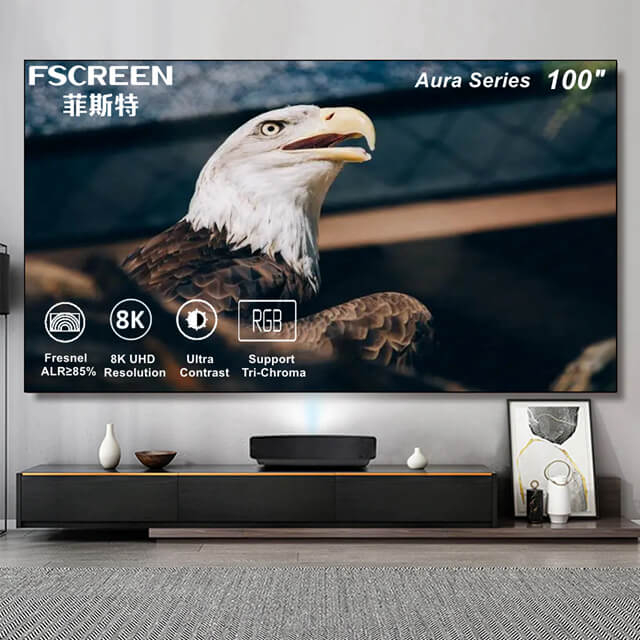

Aura-100-FF
FSCREEN
Product Specifications
| Product Name | FSCREEN Fresnel ALR Projection Screen |
| Model | Aura-100-FF |
| Type | Fixed Frame |
| Frame&Screen Material | Aluminnum Alloy & Fresnel PET |
| Product Dimensions | 2236x1267x24 mm (100 inch) |
| Outer Package Dimensions | 1498x329x321 mm |
| Projection Area | 2214x1245 mm |
| Net Weight | 15 KG |
| Gross Weight | 24 KG |
| Color | Dark Grey |
| Aspect Ratiol | 16:9 |
Optical Parameters
| Peak Gain Value | 1.8dB |
| Viewing Angle | 160° |
| Half Gain Angle | 22.5° |
| Ambient Occlusion Value | ≥85% |
| Display Compatibility | 8K, HDR, Tri-Chrome(Triple Laser) |
| Compatible Projector Throw Ratio | Ultra-Short-Throw Projector (UST) |
Fscreen ALR fresnel fixed frame projection screen is an optical screen designed for ultra-short throw projection (laser TV), utilizing the Fresnel lens optical technology specifically designed for ultra-short throw lenses. It incorporates a multi-layered optical structure and nanodiffusion particles, allowing for active adjustment of projector light and absorption of ambient light. This greatly enhances the contrast and color saturation of displayed images in brightly lit environments. It is lightweight, portable, and easy to install, making it an excellent choice for DIY enthusiasts. The screen is suitable for a variety of applications.
> Unique optical screen technology
> Best-in-class performance for use with ultra-short throw projectors
> Compact, space-saving installation design
> Unmatched front projection image contrast
> Realize the value of super large flat screen display
> Can be used in interactive touch screen applications
> Screen sizes up to 120" (16:9 format)
> Compatible with various UST ultra-short throw projectors
Fscreen has become the China main UST Laser TV brand screen supporting manufactuer
Most Frequently Q&A
1)Q:WHY FRESNEL ALR PROJECTION SCREEN ?
A:Paired with our UST ALR Fresnel Screen can obviously improve your viewing experience of a UST laser projector.
Its Fresnel lens structure and 8 Layers Optical Structure filters enhances brightness and contrast while countering the washout effect of ambient light.It is perfect for living room in bright light environment.
2)Q:WHY FSCREEN?
A:Our Fresnel ALR Screen can effectively resist ambient light impact of 85%, achieve 80% Image quality improvement with 1.1dB peak gain,
50% higher than similar projection screens.
The contrast levels are up to 100 times greater than standard matte white screens for premium color fidelity.
3)Q:What are the advantages of FSCREEN ALR Fresnel Screen compared to other manufacturers?
A:The gain and contrast of the screen is a seesaw, high gain brings low contrast. FSCREEN Ambient Light Rejection Screen equipped with Fresnel PET version high contrast material to maintain high gain without sacrificing contrast which enables to provide contrast levels that are 100 times greater than that of standard matte white projection screens.
4)Q:What is the MOQ?
A:The sample in stock is 1 pcs; the price can be negotiated if bulk order.
5)Q:Can we get the sample to check before place large quantily?
A:Of course. sample is available.
6)Q:Can the size be customized?
A:Yes, the size can be customized from 80 inch to 150 inch
7)Q:Can I customize my logo or packaging?
A:Yes, both will be accepted! our factory welcome all OEM&ODM orders!
8)Q:Do all types of projection screens have a warranty&How long do you offer after-sales services?
A:For 12 months, we provide lifetime maintenance for all types of projection screens.
