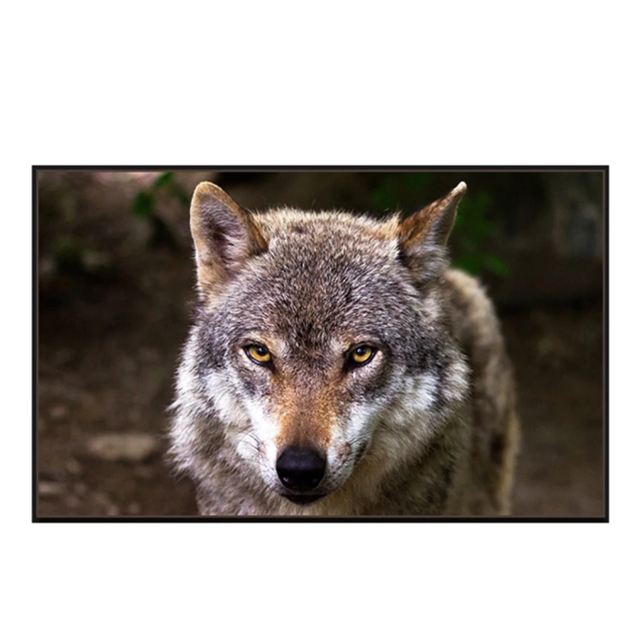

FSCREEN Iris Series Fresnel ALR Magnetic Rollable Projection Screen-100 Inch

Screen Material: Fresnel PET

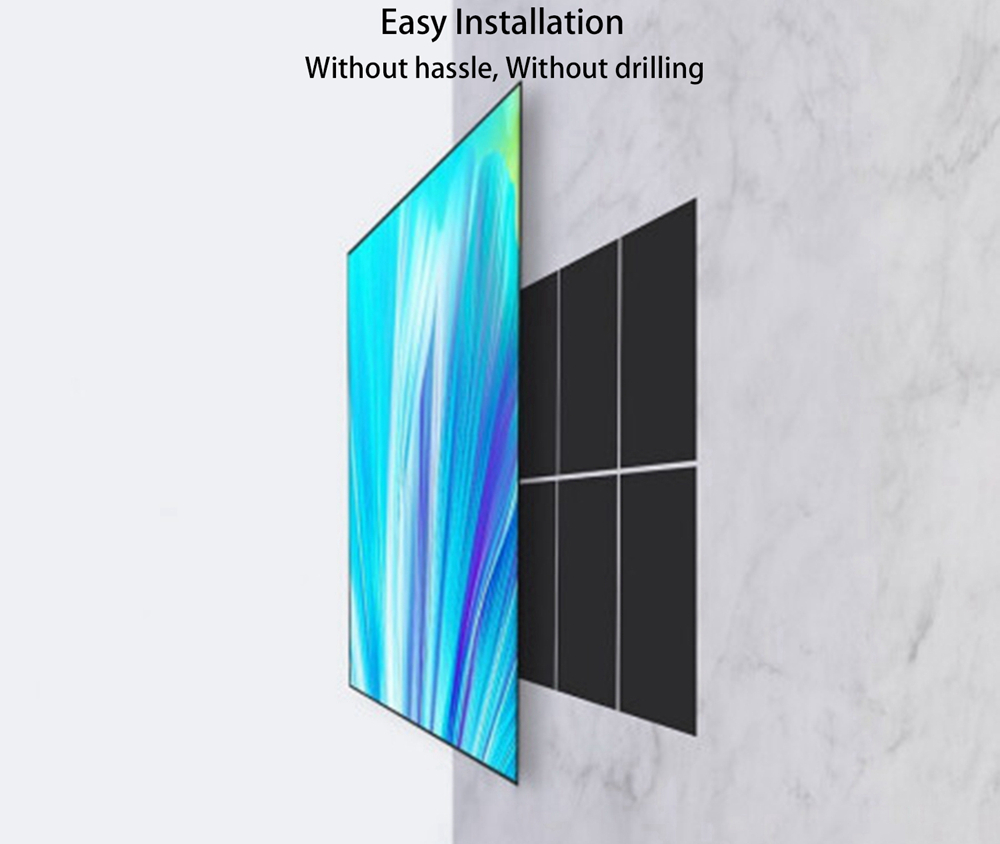

Screen Type: Rollable Magnetic Screen
Screen Color: Mineral grey color
Compatible Projector Throw Ratio:0.6-1.8:1
Display Compatibility: 4K, HDR,3D
Sale Models: Wholesale and Retail.
Min Order: 1 Piece
Recommend Retail Price : $1,000.00 USD
  • Iris-100-MR


Product Description

Product Specifications

Product NameFSCREEN ALR Fresnel Magnetic Rollable Projection Screen
TypeRollable Magnetic Screen
MaterialFresnel PET

Product Dimensions

1786x1011x1.2 mm (80 inch)
1958x1106x1.2 mm    (88 inch)
2224x1255x1.2 mm    (100 inch)
2667x1504x1.2 mm    (120 inch )

Outer Package Dimensions

1470x310x290  mm (80-100 inch)
1700x310x290 mm  (120 inch)

Projection Area

1776x1001 mm   (80 inch)
1948x1096 mm   (88 inch)
2214x1245 mm   (100 inch)
2657x1494 mm   (120 inch)

Net Weight/Gross Weight

4.5/15 KG  (80 inch)
5.5/16 KG  (88 inch)
7/17.5 KG  (100 inch)
8/ 26   KG  (120 inch)

Projection TypeFront Projection* Ceiling Mounted Projector Supported

Optical Parameters

Peak Gain Value1.6
Viewing Angle120±5°
Half Gain Angle18°
Ambient Occlusion Value≥85%
Display Compatibility4K, HDR, 3D
Compatible Projector Throw Ratio0.6-1.8:1

Product Features

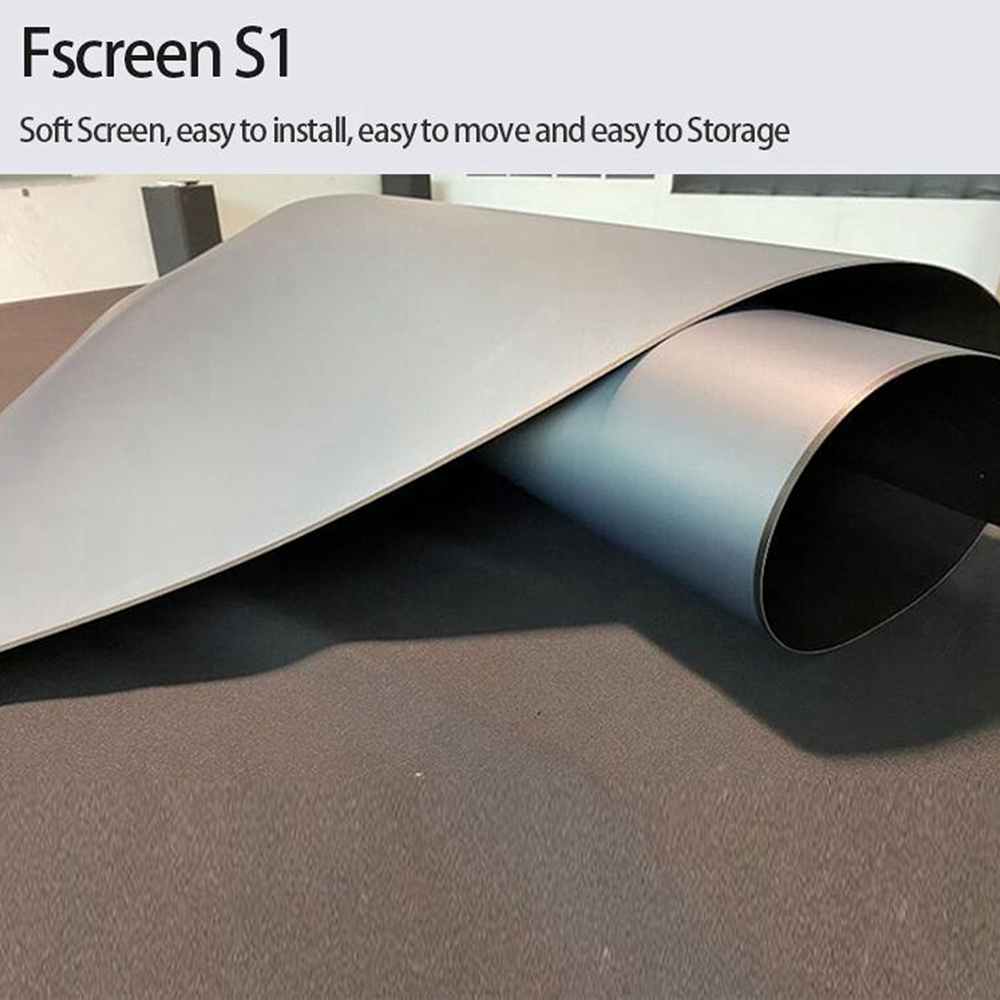

S1 Fresnel Magnetic Rollable Screen



Strategic Partners

Fscreen has become the China main UST Laser TV brand screen supporting manufactuer



Most Frequently Q&A

A:Paired with our screen can obviously improve your viewing experience of a laser projector.

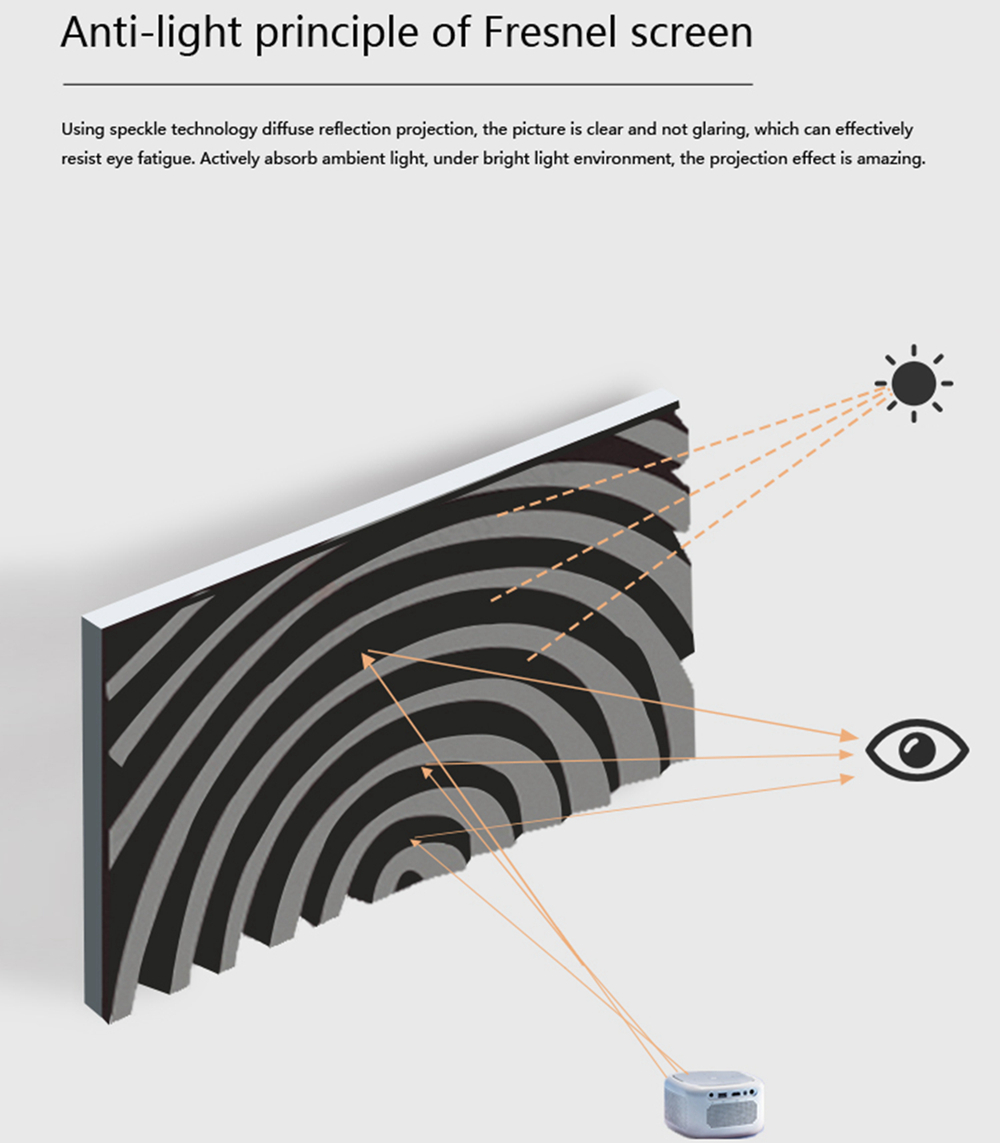

Its Fresnel lens structure and 8 Layers Optical Structure filters enhances brightness and contrast while countering the washout effect of ambient light.It is perfect for living room in bright light environment.

A:Our Fresnel ALR Screen can effectively resist ambient light impact of 85%, achieve 80% Image quality improvement with 1.1dB peak gain,
50% higher than similar projection screens.
The contrast levels are up to 100 times greater than standard matte white screens for premium color fidelity.

3)Q:What are the advantages of FSCREEN ALR Fresnel Screen compared to other manufacturers?
A:The gain and contrast of the screen is a seesaw, high gain brings low contrast. FSCREEN Ambient Light Rejection Screen equipped with Fresnel PET version high contrast material to maintain high gain without sacrificing contrast which enables to provide contrast levels that are 100 times greater than that of standard matte white projection screens.

4)Q:What is the MOQ?
A:The sample in stock is 1 pcs; the price can be negotiated if bulk order.

5)Q:Can we get the sample to check before place large quantily?
A:Of course. sample is available.

6)Q:Can the size be customized?
A:Yes, the size can be customized from 80 inch to 150 inch

7)Q:Can I customize my logo or packaging?
A:Yes, both will be accepted! our factory welcome all OEM&ODM orders!

8)Q:Do all types of projection screens have a warranty&How long do you offer after-sales services?
A:For 12 months, we provide lifetime maintenance for all types of projection screens.
